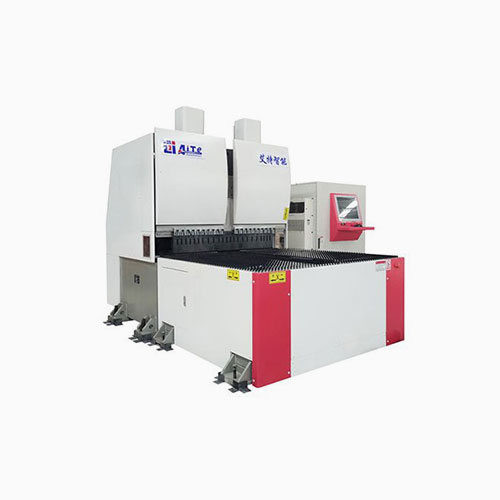

Panel Bender With Vacuum Suction Cups AT-X1400-Panel Bender-Products-Qingdao Aiotek

Products Description

The fully automatic panel bending center, independently developed by Aiotek, revolutionizes traditional bending methods, offering unparalleled precision, efficiency, cost-effectiveness, and safety.

1. High Accuracy:

The automatic sheet bending machine employs a servo clamping method, ensuring stable feeding and enhancing product processing accuracy. Unlike manual bending where errors may occur, the mechanical arm of the automatic sheet bending machine ensures error-free bending, guaranteeing the quality of batch-processed products.

2. High Efficiency:

Manual bending processes often suffer from inefficiencies due to the need for workers to manually lift large plates, leading to synchronization errors. However, the automatic bending center eliminates the need for manual lifting, thus preventing asynchronous operations and improving production efficiency. Moreover, equipped with universal molds, it eliminates the frequent need for upper and lower mold replacements, saving manpower and enhancing efficiency. Additionally, with fully automatic positioning, the center achieves a rapid bending efficiency of 0.2s/cut, ensuring continuous high-speed production.

3. High Security and Ease of Operation:

Compared to traditional methods, the fully automatic bending center eliminates the need for manual lifting throughout the process, minimizing the risk of staff injuries due to improper handling and ensuring overall safety during bending operations. Furthermore, equipped with intelligent programs, the center facilitates user-friendly operation even for staff without professional skills.

The automatic panel bending machine enhances bending efficiency and quality, streamlining operations, saving manpower and materials, maximizing processing speed, and ultimately boosting efficiency, cutting costs, and enhancing quality for enterprises.

Technical Parameters	AT-X1400	Technical Parameters	AT-X1400
Feeding Structure	Disc Suction Cup	Total Power	41KW
Bending Length	1400mm	Average Power	2KW
Maximum Bending Height	170mm	Workbench Structure	Brush & Rolling Bead
Minimum Bending Height	4mm	Speed Adjustment	Standard
Min. Inner Size of Four-side Bending	400mm*250mm	Advanced Command	Standard
Min. Inner size of One-side Bending	160mm	Arc Command	Standard
Minimum Arc Radius	1.2mm	Loading Robot Interface	Standard
Minimum Continuous Bending Speed	0.2s	Vacuum Pump	Optional
Bending Angle	0°-180°	Hinge Tooling	Optional
Axes Controllable	9Set	Equipment Size	4000mm3000mm2500mm
Maximum Feeding Speed	50m/min	Equipment Weight	20Ton

Q: BENDIN GCENTER ADVANTAGE

A: The flexible bending center is fully automatic and easy-operation.lt can efficiently produce various specifications ofparts without separate program setting personnel.Thegeneral mould can be adjusted automatically according tothe size set by the program without any adjustmenttime,which ensures the safety of the operator and thequality of the product.The positioning process is only completed once at thebeginning of the whole bending.The operation is carried outin this cycle.From the beginning to the completion of processing,the bending plate and rotating structure remainunchanged.The 0.01 degree resolution is to ensure highproduction flexibility.

Q: How can I contact you?

A: Contact us at info@aite-cnc.com.

Why choose us?

Compared with hydraulic solutions, energy consumption and carbon dioxide emissions are reduced by 64%.
Extremely low maintenance costs, 65% lower than traditional hydraulic bending machine maintenance costs.
Excellent bending accuracy and surface quality with high repeatability.
No skilled operators are required and productivity can still be maximized.Compared with manual bending machines and robotic bending machines, it has higher productivity and faster programming efficiency.
Parts to be processed are transferred from the external workbench to ensure operator safety.
